DIN 580 Lifting Eyebolts (Collared)

M8 - M72 Steel 4.6Stainless steel A2Stainless steel A4 ≡ ISO 3266
DIN 580 Lifting Eyebolts (Collared)
DIN 580 · Collared lifting eyebolt

We supply DIN 580 collared lifting eyebolts in steel and A2/A4 stainless steel, from M8 to M72 x 6. The forged collar seats square on the load face so the eye is supported in use - the pattern specified for machine lifting points. Certification is available on request with every line.

Also known as: lifting eye, eyebolt collared, collared eyebolt, lifting eyebolt, dynamo eyebolt.

DIN 580 dimensions

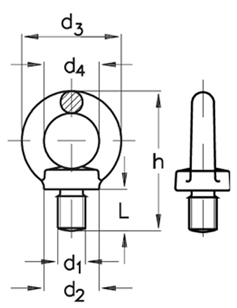

DIN 580 dimensioned technical drawing
DIN 580 dimensions
DiameterPitchCollar diameter (d2)Eye outside diameter (d3)Eye inside diameter (d4)Overall height (h)Thread length (L)
M81 1.25mm 20.0mm 36.0mm 20.0mm 49.0mm 13.0mm
M10 1.5mm 25.0mm 45.0mm 25.0mm 62.0mm 17.0mm
M12 1.75mm 30.0mm 54.0mm 30.0mm 73.5mm 20.5mm
M142 2.0mm 30.0mm 54.0mm 30.0mm 73.5mm 20.5mm
M16 2.0mm 35.0mm 63.0mm 35.0mm 89.0mm 27.0mm
M182 2.5mm 35.0mm 63.0mm 35.0mm 89.0mm 27.0mm
M20 2.5mm 40.0mm 72.0mm 40.0mm 101.0mm 30.0mm
M222 2.5mm 40.0mm 72.0mm 40.0mm 101.0mm 30.0mm
M24 3.0mm 50.0mm 90.0mm 50.0mm 126.0mm 36.0mm
M272 3.0mm 50.0mm 90.0mm 50.0mm 126.0mm 36.0mm
M30 3.5mm 65.0mm 108.0mm 60.0mm 154.0mm 45.0mm
M332 3.5mm 65.0mm 108.0mm 60.0mm 154.0mm 45.0mm
M36 4.0mm 75.0mm 126.0mm 70.0mm 182.0mm 54.0mm
M392 4.0mm 75.0mm 126.0mm 70.0mm 182.0mm 54.0mm
M42 4.5mm 85.0mm 144.0mm 80.0mm 210.0mm 63.0mm
M452 4.5.0mm 85.0mm 144.0mm 80.0mm 210.0mm 63.0mm
M48 5.0mm 100.0mm 166.0mm 90.0mm 236.0mm 68.0mm
M522 5.0mm 110.0mm 184.0mm 100.0mm 265.0mm 78.0mm
M56 5.5mm 110.0mm 184.0mm 100.0mm 265.0mm 78.0mm
M64 6.0mm 120.0mm 206.0mm 110.0mm 298.0mm 90.0mm
M72X6 6.0mm 150.0mm 260.0mm 140.0mm 360.0mm 100.0mm
  1. Overall height as listed includes the threaded length.
  2. Non-DIN intermediate size
