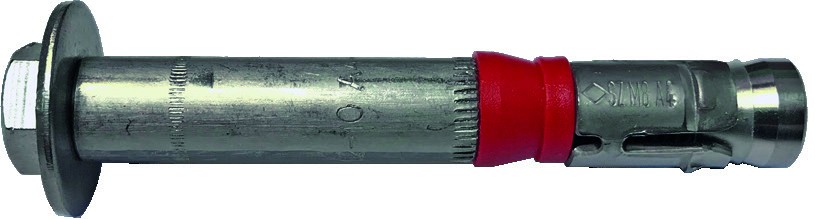

JCP Heavy Duty Anchors, Hexagon Bolt, A4 Stainless

M8 - M12 A4-316 stainless steel

We supply JCP hexagon bolt heavy duty anchors in A4-316 stainless steel from M8 to M12 (drill sizes 12mm to 18mm). The three-part sleeve and Option 1 assessment carry over from the plated range. The A4 range adds marine-grade corrosion resistance for external structural fixings.

Also known as: stainless heavy duty anchor, a4 hd anchor.

A4 stainless hex bolt heavy duty anchor dimensions

Thread (M)	Order code	Drill diameter (d0)	Length (L)	Max fixture thickness	Min hole depth (h1)	Installation torque (Nm)
M8	JHD0810SS	12 mm	85 mm	10 mm	80 mm	30
M8	JHD0830SS	12 mm	105 mm	30 mm	80 mm	30
M8	JHD0850SS	12 mm	125 mm	50 mm	80 mm	30
M10	JHD1015SS	15 mm	106 mm	15 mm	95 mm	50
M10	JHD1025SS	15 mm	116 mm	25 mm	95 mm	50
M10	JHD1045SS	15 mm	136 mm	45 mm	95 mm	50
M12	JHD1210SS	18 mm	117 mm	10 mm	105 mm	80
M12	JHD1225SS	18 mm	127 mm	20 mm	105 mm	80
M12	JHD1240SS	18 mm	147 mm	40 mm	105 mm	80
