JCP Heavy Duty Anchors, Hexagon Bolt

M6 - M24 Carbon steel, bright zinc plated

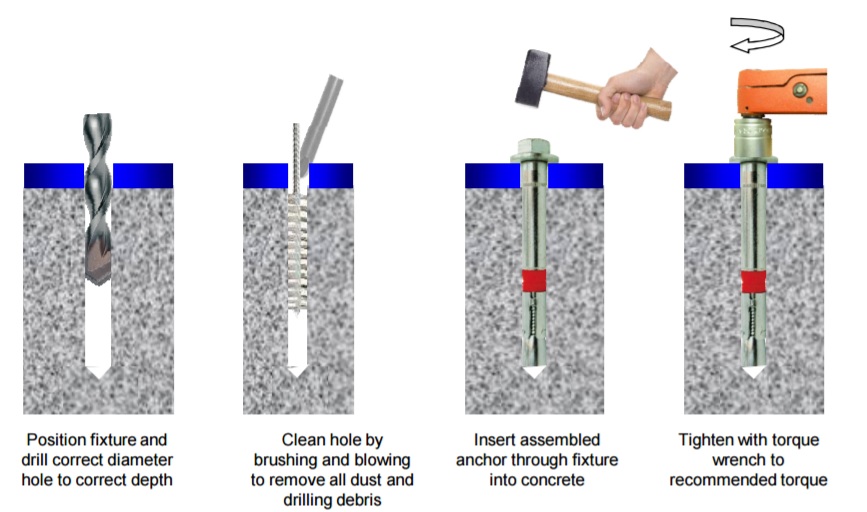

We supply JCP hexagon bolt heavy duty anchors in bright zinc plated steel from M6 to M24 (drill sizes 10mm to 32mm). The JCP heavy duty anchor is a torque-controlled expansion anchor with a three-part expansion sleeve, ETA Option 1 assessed for cracked and non-cracked concrete C20/25 to C50/60 with fire resistance loading and seismic C1 and C2 listed by JCP. The hex bolt pattern fits through the fixture like a conventional bolt.

Also known as: heavy duty anchor, high load expansion anchor, hd anchor.

Hex bolt heavy duty anchor dimensions

Thread (M)	Order code	Drill diameter (d0)	Length (L)	Max fixture thickness	Min hole depth (h1)	Installation torque (Nm)
M6	JHD0610	10 mm	75 mm	10 mm	65 mm	15
M6	JHD0630	10 mm	95 mm	30 mm	65 mm	15
M6	JHD0650	10 mm	115 mm	50 mm	65 mm	15
M8	JHD0810	12 mm	85 mm	10 mm	80 mm	30
M8	JHD0830	12 mm	105 mm	30 mm	80 mm	30
M8	JHD0850	12 mm	125 mm	50 mm	80 mm	30
M10	JHD1015	15 mm	106 mm	15 mm	95 mm	50
M10	JHD1025	15 mm	116 mm	25 mm	95 mm	50
M10	JHD1045	15 mm	136 mm	45 mm	95 mm	50
M12	JHD1210	18 mm	117 mm	10 mm	105 mm	80
M12	JHD1220	18 mm	127 mm	20 mm	105 mm	80
M12	JHD1240	18 mm	147 mm	40 mm	105 mm	80
M12	JHD1270	18 mm	177 mm	70 mm	105 mm	80
M16	JHD1610	24 mm	130 mm	10 mm	130 mm	160
M16	JHD1620	24 mm	150 mm	20 mm	130 mm	160
M16	JHD1650	24 mm	180 mm	50 mm	130 mm	160
M20	JHD2030	28 mm	192 mm	30 mm	160 mm	280
M20	JHD2060	28 mm	222 mm	60 mm	160 mm	280
M24	JHD2460	32 mm	262 mm	60 mm	180 mm	280

Materials & strength

Certification

European Technical Assessment ETA-07/0331, Option 1 (cracked and non-cracked concrete C20/25 to C50/60). Certificates are available on request.

Material & finish

Carbon steel, bright zinc plated, three-part expansion sleeve.

Related specifications

Heavy duty anchor, stud and nut Heavy duty anchor, countersunk Heavy duty anchor, hex bolt, A4 stainless

Frequently asked

Heavy duty anchor or throughbolt?

The heavy duty anchor's three-part expansion sleeve spreads load further than a throughbolt's wedge, and the range runs to M24 for more demanding duties. The ranges overlap and both carry Option 1 assessment - pick by the duty and the specified anchor type, or send us the fixing schedule.

Can you supply the certificates?

Yes - ETA documentation for the range is available on request. Send us your requirement and we will quote within 24 hours.

Need Heavy duty anchor, hex bolt in a non-standard size or material?

Send us your drawing — specials quoted within 24 hours.
