JCP Heavy Duty Anchors, Stud & Nut

M8 - M16 Carbon steel, bright zinc plated

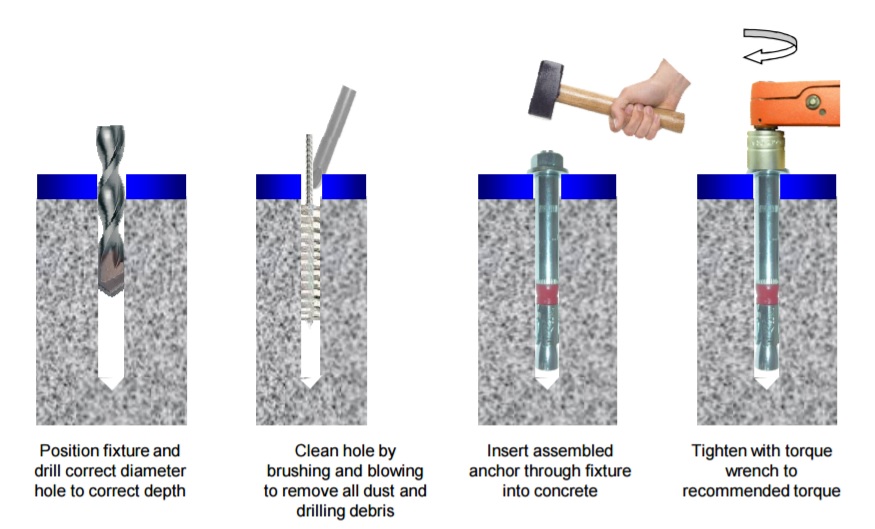

We supply JCP stud and nut heavy duty anchors in bright zinc plated steel from M8 to M16 (drill sizes 12mm to 24mm). Torque-controlled, with the family's three-part expansion sleeve and ETA Option 1 assessment. The projecting stud pattern lets heavy fixtures be located over the studs and nutted down.

Also known as: stud anchor heavy duty, projecting heavy duty anchor.

Stud and nut heavy duty anchor dimensions

Thread (M)	Order code	Drill diameter (d0)	Length (L)	Max fixture thickness	Min hole depth (h1)	Installation torque (Nm)
M8	NHD0810	12 mm	90 mm	10 mm	80 mm	30
M8	NHD0830	12 mm	110 mm	30 mm	80 mm	30
M8	NHD0850	12 mm	130 mm	50 mm	80 mm	30
M10	NHD1015	15 mm	111 mm	15 mm	95 mm	50
M10	NHD1025	15 mm	121 mm	25 mm	95 mm	50
M10	NHD1045	15 mm	141 mm	45 mm	95 mm	50
M12	NHD1210	18 mm	122 mm	10 mm	105 mm	80
M12	NHD1220	18 mm	132 mm	20 mm	105 mm	80
M12	NHD1240	18 mm	152 mm	40 mm	105 mm	80
M12	NHD1270	18 mm	182 mm	70 mm	105 mm	80
M16	NHD1620	24 mm	157 mm	20 mm	130 mm	160
M16	NHD1650	24 mm	187 mm	50 mm	130 mm	160

Materials & strength

Certification

European Technical Assessment ETA-07/0331, Option 1 (cracked and non-cracked concrete C20/25 to C50/60). Certificates are available on request.

Material & finish

Carbon steel, bright zinc plated.

Related specifications

Heavy duty anchor, hex bolt Heavy duty anchor, stud and nut, A4 stainless

Frequently asked

When is the stud pattern preferred?

Machine bases and heavy brackets that need lining up: set the anchors, lower the fixture over the projecting studs, then nut down. The hex bolt pattern suits fixtures offered up after drilling through their holes.
