JCP ETA Ankerbolts, Countersunk, A4 Stainless
6 - 8mm dia. (50 - 100mm)
A4-316 stainless steel, bi-metallic with carbon steel tip
We supply JCP ETA countersunk Ankerbolts in A4-316 stainless steel with the bi-metallic carbon-steel cutting tip, 6mm and 8mm drill sizes, lengths 50mm to 100mm, TX40/T45 drives - the flush-finish marine-grade line. Thread-cutting, expansion-free and removable - the Ankerbolt principle in A4.
Also known as: stainless countersunk ankerbolt, a4 csk screwbolt.

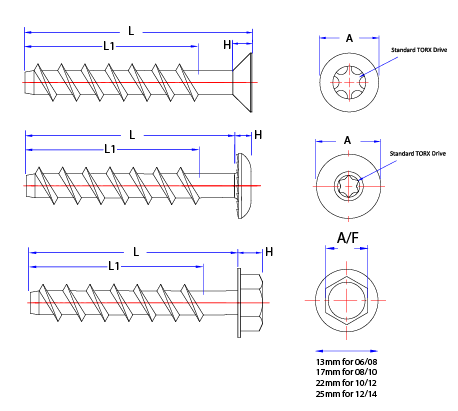

A4 stainless countersunk Ankerbolt dimensions
| Drill diameter (d0) | Order code | Length (L) | Max fixture thickness | Min hole depth (h1) | Head diameter | Drive |
|---|---|---|---|---|---|---|
| 6 mm1 | JAB06/08050CSSS | 50 mm | 5 mm | 55 mm | 15 mm | T40 |
| 6 mm | JAB06/08075CSSS | 75 mm | 20 mm | 65 mm | 15 mm | T40 |
| 6 mm | JAB06/08100CSSS | 100 mm | 45 mm | 65 mm | 15 mm | T40 |
| 8 mm | JAB08/10050CSSS | 50 mm | 5 mm | 55 mm | 18 mm | T45 |
| 8 mm | JAB08/10060CSSS | 60 mm | 15 mm | 55 mm | 18 mm | T45 |
| 8 mm | JAB08/10075CSSS | 75 mm | 20 mm | 65 mm | 18 mm | T45 |
| 8 mm | JAB08/10100CSSS | 100 mm | 45 mm | 65 mm | 18 mm | T45 |
- Not included in the ETA (JCP catalogue note).
Need ETA A4 stainless countersunk Ankerbolt in a non-standard size or material?
Send us your drawing — specials quoted within 24 hours.
