Philidas Turret Nuts
Philidas Turret nuts are all-metal self-locking nuts used where resistance to vibration loosening matters. We supply Philidas nuts in steel and stainless steel A2 and A4 — send us your requirement and we'll quote within 24 hours.

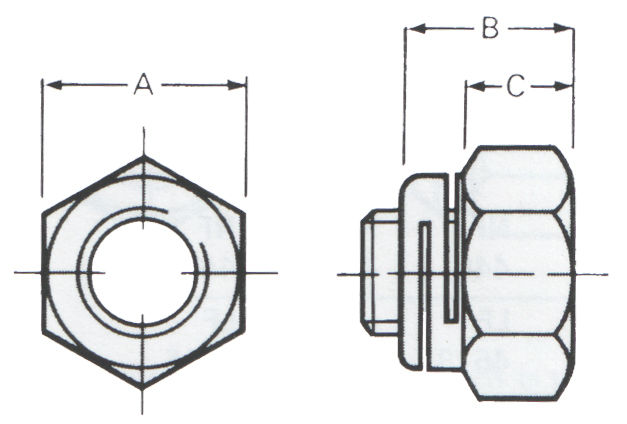

Philidas turret nut dimensions
| Diameter | Order Reference | A a/f | B | C |
|---|---|---|---|---|
| M2.5 | 2.5 MCP | 5.0mm | 4.5mm | 2.4mm |
| M3 | 3 MCP | 5.5mm | 4.75mm | 2.45mm |
| M3.5 | 3.5 MCP | 7.0mm | 5.0mm | 2.5mm |
| M4 | 4 MCP | 7.0mm | 5.6mm | 3.3mm |
| M5 | 5 MCP | 8.0mm | 6.8mm | 3.9mm |
| M6 | 6 MCP | 10.0mm | 8.5mm | 5.0mm |
| M8 | 8 MCP | 13.0mm | 10.5mm | 6.0mm |
| M10 | 10 MCP | 17.0mm | 13.0mm | 7.6mm |
| M12 | 12 MCP | 19.0mm | 15.0mm | 8.5mm |
| M14 | 14 MCP | 22.0mm | 17.0mm | 10.0mm |
| M16 | 16 MCP | 24.0mm | 19.5mm | 12.0mm |
| M18 | 18 MCP | 27.0mm | 20.0mm | 14.0mm |
| M20 | 20 MCP | 30.0mm | 24.0mm | 15.5mm |
| M22 | 22 MCP | 32.0mm | 26.5mm | 17.5mm |
| M24 | 24 MCP | 36.0mm | 29.0mm | 19.0mm |
| M27 | 27 MCP | 41.0mm | 33.0mm | 22.0mm |
| M30 | 30 MCP | 46.0mm | 39.0mm | 26.0mm |
| M33 | 33 MCP | 50.0mm | 43.0mm | 30.0mm |
| M36 | 36 MCP | 55.0mm | 47.0mm | 32.5mm |
| M39 | 39 MCP | 60.0mm | 50.0mm | 35.0mm |
| M42 | 42 MCP | 65.0mm | 54.0mm | 37.5mm |
| M45 | 45 MCP | 70.0mm | 58.0mm | 41.0mm |
| M48 | 48 MCI | 75.0mm | 62.0mm | 42.5mm |
| M52 | 52 MCP | 80.0mm | 67.0mm | 46.5mm |
Materials & strength
All-metal turret locking
The slotted turret grips the bolt thread by spring action, giving vibration resistance without an insert.
What is a Philidas Turret nut?
The Philidas Turret nut is an all-metal self-locking nut with a raised cylindrical (turret) section above the hexagon, which houses the slotted locking feature. The locking action is metal-to-metal, with no insert.
How does the locking action work?
Slots in the turret section let it act as a spring set slightly inward of the main thread, so it grips the bolt thread as the bolt passes through. The grip strongly resists vibration loosening and is not limited by the temperature constraints of a polymer insert.
What is the difference between the Philidas Turret and Industrial patterns?
Both lock the same way through a slotted, sprung section; the Turret pattern carries the locking feature in a taller turret above the hexagon, while the Industrial pattern keeps a standard hexagon profile. Which one a drawing calls for is usually set by height and clearance.
Need Philidas turret nut in a non-standard size or material?
Send us your drawing — specials quoted within 24 hours.
