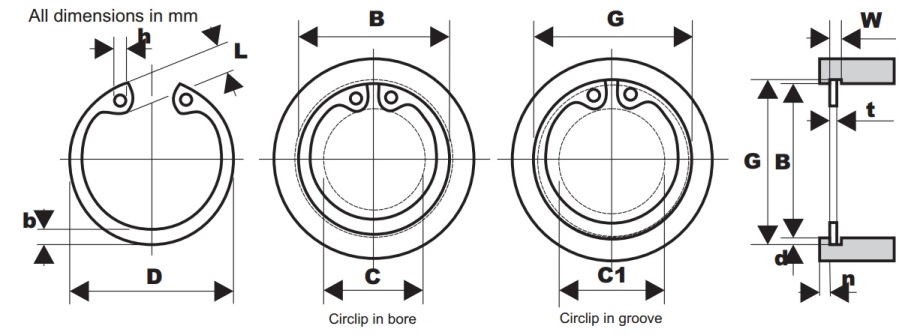

Dimensions for Metric Internal Circlips D1300
| Size Code | Bore | Groove | Groove | Groove | Groove | Circlip | Circlip | Circlip |
|---|---|---|---|---|---|---|---|---|
| B | G | W | n | d | t | D | C | |
| 0080 | 8.0 | 8.4 | 0.90 | 0.6 | 0.2 | 0.80 | 8.7 | 3.0 |
| 0090 | 9.0 | 9.4 | 0.90 | 0.6 | 0.2 | 0.80 | 9.8 | 3.7 |
| 0095 | 9.5 | 9.9 | 1.10 | 0.6 | 0.2 | 1.00 | 10.3 | 3.2 |
| 0100 | 10.0 | 10.4 | 1.10 | 0.6 | 0.2 | 1.00 | 10.8 | 3.3 |
| 0110 | 11.0 | 11.4 | 1.10 | 0.6 | 0.2 | 1.00 | 11.8 | 4.1 |
| 0120 | 12.0 | 12.5 | 1.10 | 0.8 | 0.3 | 1.00 | 13.0 | 4.9 |
| 0130 | 13.0 | 13.6 | 1.10 | 0.9 | 0.3 | 1.00 | 14.1 | 5.4 |
| 0140 | 14.0 | 14.6 | 1.10 | 0.9 | 0.3 | 1.00 | 15.1 | 6.2 |
| 0150 | 15.0 | 15.7 | 1.10 | 1.1 | 0.4 | 1.00 | 16.2 | 7.2 |
| 0160 | 16.0 | 16.8 | 1.10 | 1.2 | 0.4 | 1.00 | 17.3 | 8.0 |
| 0180 | 18.0 | 19.0 | 1.10 | 1.5 | 0.5 | 1.00 | 19.5 | 9.4 |
| 0190 | 19.0 | 20.0 | 1.10 | 1.5 | 0.5 | 1.00 | 20.5 | 10.4 |
| 0200 | 20.0 | 21.0 | 1.10 | 1.5 | 0.5 | 1.00 | 21.5 | 11.2 |
| Size Code | Bore | Groove | Groove | Groove | Groove | Circlip | Circlip | Circlip |
|---|---|---|---|---|---|---|---|---|
| B | G | W | n | d | t | D | C | |
| 0210 | 21.0 | 22.0 | 1.10 | 1.5 | 0.5 | 1.00 | 22.5 | 12.2 |
| 0220 | 22.0 | 23.0 | 1.10 | 1.5 | 0.5 | 1.00 | 23.5 | 13.2 |
| 0230 | 23.0 | 24.1 | 1.30 | 1.7 | 0.6 | 1.20 | 24.6 | 14.2 |
| 0240 | 24.0 | 25.2 | 1.30 | 1.8 | 0.6 | 1.20 | 25.9 | 14.8 |
| 0250 | 25.0 | 26.2 | 1.30 | 1.8 | 0.6 | 1.20 | 26.9 | 15.5 |
| 0260 | 26.0 | 27.2 | 1.30 | 1.8 | 0.6 | 1.20 | 27.9 | 16.1 |
| 0270 | 27.0 | 28.4 | 1.30 | 2.1 | 0.7 | 1.20 | 29.1 | 17.1 |
| 0280 | 28.0 | 29.4 | 1.30 | 2.1 | 0.7 | 1.20 | 30.1 | 17.9 |
| 0290 | 29.0 | 30.4 | 1.30 | 2.1 | 0.7 | 1.20 | 31.1 | 18.9 |
| 0300 | 30.0 | 31.4 | 1.30 | 2.1 | 0.7 | 1.20 | 32.1 | 19.9 |
| 0310 | 31.0 | 32.7 | 1.30 | 2.6 | 0.9 | 1.20 | 33.4 | 20.0 |
| 0320 | 32.0 | 33.7 | 1.30 | 2.6 | 0.9 | 1.20 | 34.4 | 20.6 |
| 0330 | 33.0 | 34.7 | 1.30 | 2.6 | 0.9 | 1.20 | 35.5 | 21.6 |
| 0340 | 34.0 | 35.7 | 1.60 | 2.6 | 0.9 | 1.50 | 36.5 | 22.6 |
| Size Code | Bore | Groove | Groove | Groove | Groove | Circlip | Circlip | Circlip |
|---|---|---|---|---|---|---|---|---|
| B | G | W | n | d | t | D | C | |
| 0350 | 35.0 | 37.0 | 1.60 | 3.0 | 1.0 | 1.50 | 37.8 | 23.6 |
| 0360 | 36.0 | 38.0 | 1.60 | 3.0 | 1.0 | 1.50 | 38.8 | 24.6 |
| 0370 | 37.0 | 39.0 | 1.60 | 3.0 | 1.0 | 1.50 | 39.8 | 25.4 |
| 0380 | 38.0 | 40.0 | 1.60 | 3.0 | 1.0 | 1.50 | 40.8 | 26.4 |
| 0400 | 40.0 | 42.5 | 1.85 | 3.8 | 1.3 | 1.75 | 43.5 | 27.8 |
| 0410 | 41.0 | 43.5 | 1.85 | 3.8 | 1.3 | 1.75 | 44.5 | 28.6 |
| 0420 | 42.0 | 44.5 | 1.85 | 3.8 | 1.3 | 1.75 | 45.5 | 29.6 |
| 0450 | 45.0 | 47.5 | 1.85 | 3.8 | 1.3 | 1.75 | 48.5 | 32.0 |
| 0470 | 47.0 | 49.5 | 1.85 | 3.8 | 1.3 | 1.75 | 50.5 | 33.5 |
| 0480 | 48.0 | 50.5 | 1.85 | 3.8 | 1.3 | 1.75 | 51.5 | 34.5 |
| 0500 | 50.0 | 53.0 | 2.15 | 4.5 | 1.5 | 2.00 | 54.2 | 36.3 |
| 0510 | 51.0 | 54.0 | 2.15 | 4.5 | 1.5 | 2.00 | 55.2 | 37.3 |
| 0520 | 52.0 | 55.0 | 2.15 | 4.5 | 1.5 | 2.00 | 56.2 | 37.9 |
| Size Code | Bore | Groove | Groove | Groove | Groove | Circlip | Circlip | Circlip |
|---|---|---|---|---|---|---|---|---|
| B | G | W | n | d | t | D | C | |
| 0550 | 55.0 | 58.0 | 2.15 | 4.5 | 1.5 | 2.00 | 59.2 | 40.7 |
| 0560 | 56.0 | 59.0 | 2.15 | 4.5 | 1.5 | 2.00 | 60.2 | 41.7 |
| 0570 | 57.0 | 60.0 | 2.15 | 4.5 | 1.5 | 2.00 | 61.2 | 42.7 |
| 0580 | 58.0 | 61.0 | 2.15 | 4.5 | 1.5 | 2.00 | 62.2 | 43.5 |
| 0600 | 60.0 | 63.0 | 2.15 | 4.5 | 1.5 | 2.00 | 64.2 | 44.7 |
| 0620 | 62.0 | 65.0 | 2.15 | 4.5 | 1.5 | 2.00 | 66.2 | 46.7 |
| 0630 | 63.0 | 66.0 | 2.15 | 4.5 | 1.5 | 2.00 | 67.2 | 47.7 |
| 0640 | 64.0 | 67.0 | 2.15 | 4.5 | 1.5 | 2.00 | 68.2 | 48.7 |
| 0650 | 65.0 | 68.0 | 2.65 | 4.5 | 1.5 | 2.50 | 69.2 | 49.0 |
| 0670 | 67.0 | 70.0 | 2.65 | 4.5 | 1.5 | 2.50 | 71.5 | 50.8 |
| 0680 | 68.0 | 71.0 | 2.65 | 4.5 | 1.5 | 2.50 | 72.5 | 51.6 |
| 0700 | 70.0 | 73.0 | 2.65 | 4.5 | 1.5 | 2.50 | 74.5 | 53.6 |
| 0720 | 72.0 | 75.0 | 2.65 | 4.5 | 1.5 | 2.50 | 76.5 | 55.6 |
| 0750 | 75.0 | 78.0 | 2.65 | 4.5 | 1.5 | 2.50 | 79.5 | 58.6 |
| 0760 | 76.0 | 79.0 | 2.65 | 4.5 | 1.5 | 2.50 | 80.7 | 59.6 |
| Size Code | Bore | Groove | Groove | Groove | Groove | Circlip | Circlip | Circlip |
|---|---|---|---|---|---|---|---|---|
| B | G | W | n | d | t | D | C | |
| 0780 | 78.0 | 81.0 | 2.65 | 4.5 | 1.5 | 2.50 | 82.5 | 60.1 |
| 0800 | 80.0 | 83.5 | 2.65 | 5.3 | 1.8 | 2.50 | 85.5 | 62.1 |
| 0820 | 82.0 | 85.5 | 2.65 | 5.3 | 1.8 | 2.50 | 87.5 | 64.1 |
| 0850 | 85.0 | 88.5 | 3.15 | 5.3 | 1.8 | 3.00 | 90.5 | 66.9 |
| 0880 | 88.0 | 91.4 | 3.15 | 5.3 | 1.8 | 3.00 | 93.5 | 69.9 |
| 0900 | 90.0 | 93.5 | 3.15 | 5.3 | 1.8 | 3.00 | 95.5 | 71.9 |
| 0920 | 92.0 | 95.5 | 3.15 | 5.3 | 1.8 | 3.00 | 97.5 | 73.7 |
| 0950 | 95.0 | 98.5 | 3.15 | 5.3 | 1.8 | 3.00 | 100.5 | 76.5 |
| 0980 | 98.0 | 101.5 | 3.15 | 5.3 | 1.8 | 3.00 | 103.5 | 79.0 |
| 1000 | 100.0 | 103.5 | 3.15 | 5.3 | 1.8 | 3.00 | 105.5 | 80.6 |
| 1020 | 102.0 | 106.0 | 4.15 | 6.0 | 2.0 | 4.00 | 108.0 | 82.0 |
| 1050 | 105.0 | 109.0 | 4.15 | 6.0 | 2.0 | 4.00 | 112.0 | 85.0 |
| 1080 | 108.0 | 112.0 | 4.15 | 6.0 | 2.0 | 4.00 | 115.0 | 88.0 |
| 1100 | 110.0 | 114.0 | 4.15 | 6.0 | 2.0 | 4.00 | 117.0 | 88.2 |
| Size Code | Bore | Groove | Groove | Groove | Groove | Circlip | Circlip | Circlip |
|---|---|---|---|---|---|---|---|---|
| B | G | W | n | d | t | D | C | |
| 1120 | 112.0 | 116.0 | 4.15 | 6.0 | 2.0 | 4.00 | 119.0 | 90.0 |
| 1150 | 115.0 | 119.0 | 4.15 | 6.0 | 2.0 | 4.00 | 122.0 | 93.0 |
| 1200 | 120.0 | 124.0 | 4.15 | 6.0 | 2.0 | 4.00 | 127.0 | 96.9 |
| 1250 | 125.0 | 129.0 | 4.15 | 6.0 | 2.0 | 4.00 | 132.0 | 101.9 |
| 1270 | 127.0 | 131.0 | 4.15 | 6.0 | 2.0 | 4.00 | 135.0 | 103.9 |
| 1300 | 130.0 | 134.0 | 4.15 | 6.0 | 2.0 | 4.00 | 137.0 | 106.9 |
| 1350 | 135.0 | 139.0 | 4.15 | 6.0 | 2.0 | 4.00 | 142.0 | 111.5 |
| 1400 | 140.0 | 144.0 | 4.15 | 6.0 | 2.0 | 4.00 | 147.0 | 116.5 |
| 1450 | 145.0 | 149.0 | 4.15 | 6.0 | 2.0 | 4.00 | 152.0 | 121.0 |
| 1500 | 150.0 | 155.0 | 4.15 | 7.5 | 2.5 | 4.00 | 158.0 | 124.8 |
| 1550 | 155.0 | 160.0 | 4.15 | 7.5 | 2.5 | 4.00 | 164.0 | 129.8 |
| 1600 | 160.0 | 165.0 | 4.15 | 7.5 | 2.5 | 4.00 | 169.0 | 132.7 |
| 1650 | 165.0 | 170.0 | 4.15 | 7.5 | 2.5 | 4.00 | 174.5 | 137.7 |
| 1700 | 170.0 | 175.0 | 4.15 | 7.5 | 2.5 | 4.00 | 179.5 | 141.6 |
| Size Code | Bore | Groove | Groove | Groove | Groove | Circlip | Circlip | Circlip |
|---|---|---|---|---|---|---|---|---|
| B | G | W | n | d | t | D | C | |
| 1750 | 175.0 | 180.0 | 4.15 | 7.5 | 2.5 | 4.00 | 184.5 | 146.6 |
| 1800 | 180.0 | 185.0 | 4.15 | 7.5 | 2.5 | 4.00 | 189.5 | 150.2 |
| 1850 | 185.0 | 190.0 | 4.15 | 7.5 | 2.5 | 4.00 | 194.5 | 155.2 |
| 1900 | 190.0 | 195.0 | 4.15 | 7.5 | 2.5 | 4.00 | 199.5 | 160.2 |
| 1950 | 195.0 | 200.0 | 4.15 | 7.5 | 2.5 | 4.00 | 204.5 | 165.2 |
| 2000 | 200.0 | 205.0 | 4.15 | 7.5 | 2.5 | 4.00 | 209.5 | 170.2 |
