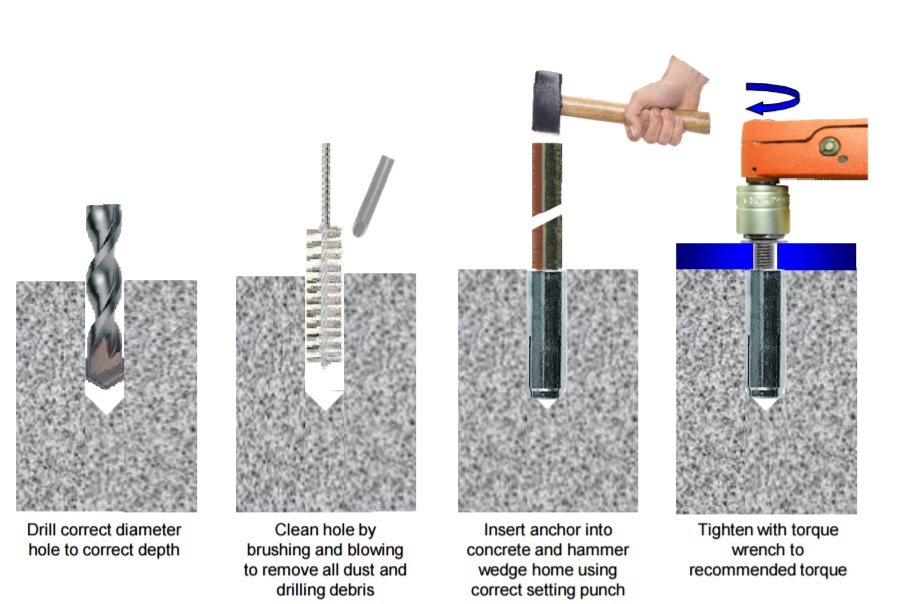

An A4 stainless steel internally threaded socket anchor for use with bolts or threaded rod of any length. May be set flush or at a depth. Full expansion can be guaranteed by using the correct shouldered setting punch. Suitable for use in concrete
Product Information
Deformation controlled anchor available in A4-316 stainless steel. Suitable for use in non-cracked concrete between C20/25 & C50/60
Features
Internal thread suitable for bolts or threaded studs.
Permanent socket to allow removal and replacement of fixture.
Tested to ETAG 001 Part 4, deformed controlled anchors
| Part Number | Thread Dia. | Anchor Length | Hole Dia. | Setting Punch | Fixture Clearance Hole | Internal Thread Length | Embedment Depth | Minimum Hole Depth | Minimum Structure Thickness | Maximum Installation Torque |
| DSS06 | 6mm | 30mm | 8mm | DZSP06 | 7mm | 13mm | 30mm | 30mm | 100mm | 4Nm |
| DSS08 | 8mm | 30mm | 10mm | DZSP08 | 9mm | 13mm | 30mm | 30mm | 100mm | 8Nm |
| DSS10 | 10mm | 40mm | 12mm | DZSP10 | 12mm | 15mm | 40mm | 40mm | 130mm | 15Nm |
| DSS12 | 12mm | 50mm | 15mm | DZSP12 | 14mm | 18mm | 50mm | 50mm | 140mm | 35Nm |
| DSS16 | 16mm | 65mm | 20mm | DZSP16 | 18mm | 23mm | 65mm | 65mm | 160mm | 60Nm |
